Single tank 2-piece ultrasonic cleaner

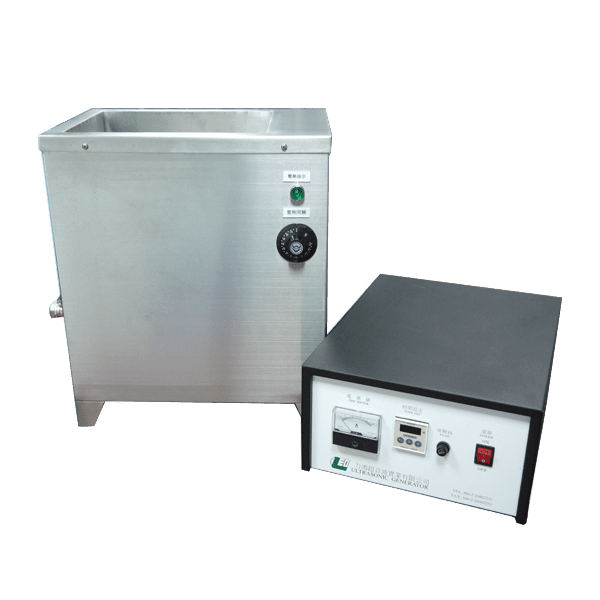

L-300 Single tank 2-piece ultrasonic cleaner
Product Name : Single tank 2-piece ultrasonic cleaner
Product Description

Application:

This series is suitable for cleaning workpieces in various industries. For example: cleaning of electroplated parts before plating, clock parts, hardware machinery parts, chemical fiber filter spinning nozzles, semiconductor wafers, tools, lenses, glasses frames, jewelry, glassware, etc.

Features:

  • All imported stainless steel structure ‘Thick inner tank stainless steel plate’ Acid and alkali resistant ’Beautiful and durable.
  • Adopt high “Q” value transducer and West Germany bonding process, the ultrasonic output power is large.
  • Set up solvent heating and temperature automatic constant temperature device, temperature control range is room temperature ~ 120 ℃.
  • The ultrasonic tank is separated from the ultrasonic generator and connected by a high-frequency wire socket, which is convenient to use and maintain.
Inquiry
Product details

How does Industrial Ultrasonic Cleaner work?

Ultrasonic cleaning is conducted in a liquid at a high-speed oscillation of 40,000 times per second, which promotes the action of the medium, causing pressure changes between the molecules of the liquid, causing cavitation.

When such a tiny vacuum bubble is ruptured under pressure and rupture, a strong impact force is generated, and the surface of the cleaning object and the dirt of the dead space are peeled off, and the function of thorough cleaning is achieved.

Due to cavitation, ultrasonic waves can "crush" and disperse dirt such as grease on the surface of objects existing in a liquid medium, such as fruits, mechanical parts, integrated circuit chips, textiles, etc., and then be washed away by the flowing liquid. The surface of an object plays a role in cleaning the surface of the object.
Ultrasonic cleaning has been widely used in industry. It has high cleaning efficiency and good cleanliness, especially for cleaning some objects with complex surface shapes.

Ultrasonic cleaning has been widely used in industry. It has high cleaning efficiency and good cleanliness, especially for cleaning some objects with complex surface shapes.

Ultrasonic cleaning and a variety of chemical, physical, electrochemical and physical cleaning methods, compared with the following unique advantages:

  • can quickly and thoroughly remove all kinds of dirt on the surface of the workpiece.
  • Can clean precision parts with cavities, grooves and other complex shapes.
  • No damage to the surface of the workpiece.
  • Various cleaning agents can be used.
  • It can be cleaned at room temperature or with appropriate heating (about 60℃).
  • One-piece structure of the machine makes it easy to move.
  • Save solvent, cleaning paper, energy, working place and labor.

Ultrasonic application range

Mainly used in machinery, electronics, optics, medicine, electroplating, painting and pre-treatment of vacuum coating. It is especially suitable for parts with complex surface shapes, such as cleaning of slits, grooves, deep holes and boring on precision workpieces, and at the same time cleaning off the surface oil, rust and oxide skin. Especially for the pharmaceutical industry, the cleaning effect of various glass and internal surgical instruments is the most ideal, not only can achieve the purpose of cleaning, but also can play a role in shattering various microorganisms and bacteria attached to the inner and outer walls of glassware to achieve cleaning and disinfection.

ModelL-600L-900L-1200L-1500L-1800
Inner tank size 400x300x330 450x350x380 500x400x400 550x450x420 600x500x440
Outer tank size 530x360x480 580x410x530 630x460x550 680x510x580 730x560x590
Ultrasonic output 600W 900W 1200W 1500W 1800W
Output frequency 28 or 40KHz 28 or 40KHz 28 or 40KHz 28 or 40KHz 28 or 40KHz
Capacity 40L 60L 76L 99L 126L

Best Industrial Ultrasonic Cleaning Machine Manufacturer

There are many different parts that need to be cleaned in industrial production.

Therefore, having an industrial cleaning machine can help you improve your productivity.

As the best manufacturer of industrial ultrasonic cleaners, we can customize the machine according to your needs, such as cleaning capacity, workpiece material, and dirt.

We can provide customized ultrasonic cleaning equipment according to your needs, such as cleaning capacity, workpiece material, and dirt removal.

Please feel free to write to us and let us know your requirements!
